Train, evaluate, and track a fraud model#
Goal. Build a leakage-safe model comparison from a bounded payment run.
Audience. ML engineers validating a fraud feature pipeline.
Prerequisites. poetry install -E ml; no external service is required.
Produces. Inspection tables, temporal splits, metrics, a local artifact, and a manifest.
Source size. The default cells generate approximately 1,000 logical payments; increase duration and population together for a 10,000-payment run.
Offline path. All marked offline cells run without Docker or network services. Service cells are optional and explicitly marked in notebook metadata.
Output. The evaluation manifest is written to outputs/train-and-track-fraud-model/; remove that directory when you are finished experimenting.
!pip install fastapi uvicorn httpx
Requirement already satisfied: fastapi in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (0.141.1)
Requirement already satisfied: uvicorn in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (0.53.0)
Requirement already satisfied: httpx in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (0.28.1)
Requirement already satisfied: starlette>=0.46.0 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from fastapi) (1.7.0)
Requirement already satisfied: pydantic>=2.9.0 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from fastapi) (2.13.5)
Requirement already satisfied: typing-extensions>=4.8.0 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from fastapi) (4.16.0)
Requirement already satisfied: typing-inspection>=0.4.2 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from fastapi) (0.4.4)
Requirement already satisfied: annotated-doc>=0.0.2 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from fastapi) (0.0.5)
Requirement already satisfied: click>=7.0 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from uvicorn) (8.5.0)
Requirement already satisfied: h11>=0.8 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from uvicorn) (0.16.0)
Requirement already satisfied: anyio in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from httpx) (4.15.1)
Requirement already satisfied: certifi in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from httpx) (2026.7.22)
Requirement already satisfied: httpcore==1.* in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from httpx) (1.0.9)
Requirement already satisfied: idna in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from httpx) (3.19)
Requirement already satisfied: annotated-types>=0.6.0 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from pydantic>=2.9.0->fastapi) (0.8.0)
Requirement already satisfied: pydantic-core==2.46.5 in /home/emc/Projects/test/.venv/lib/python3.14/site-packages (from pydantic>=2.9.0->fastapi) (2.46.5)
Optional model-serving setup#
The first cell installs FastAPI, Uvicorn, and HTTPX. Start the local serving adapter only after the offline model artifact has been created.
uvicorn examples.model_service.app:app --host 127.0.0.1 --port 8000
Set FRAUDTWIN_MODEL_ARTIFACT for another artifact. Stop Uvicorn with Ctrl-C; the TestClient and offline manifest remain available without a running service.
Set up a deterministic source run
import json
from datetime import timedelta
from pathlib import Path
from tempfile import TemporaryDirectory
import polars as pl
from fraudtwin.config import FraudRegimeConfig, load_config
from fraudtwin.generation import generate
root = next(
(p for p in (Path.cwd(), *Path.cwd().parents) if (p / "configs" / "minimal.yaml").exists()),
Path.cwd(),
)
base = load_config(root / "configs" / "minimal.yaml")
# Scale the population so the bounded example produces about 1,000 payments.
population = base.population.model_copy(
update={
"customers": 200,
"accounts": 300,
"cards": 240,
"devices": 240,
"pix_keys": 160,
"merchants": 60,
}
)
simulation = base.simulation.model_copy(update={"duration_days": 10})
fraud = base.fraud.model_copy(update={"enabled": True, "target_rate": 0.05})
regime = FraudRegimeConfig(
id="steady-history",
from_time=simulation.start,
to_time=simulation.start + timedelta(days=simulation.duration_days),
)
splits = base.dataset.splits.model_copy(
update={
"train_fraction": 0.20,
"validation_fraction": 0.20,
"test_fraction": 0.60,
"label_delay_gap_seconds": 3600,
}
)
dataset = base.dataset.model_copy(update={"splits": splits})
backtest = base.backtest.model_copy(update={"regimes": (regime,)})
config = base.model_copy(
update={
"population": population,
"simulation": simulation,
"fraud": fraud,
"dataset": dataset,
"backtest": backtest,
}
)
data = generate(config, write=False)
run_id = data.run_id
payments = pl.DataFrame([item.model_dump(mode="json") for item in data.behavior.payments])
print({"run_id": run_id, "payments": len(payments), "events": len(data.behavior.payment_events)})
{'run_id': 'RUN-67aabdbd8cee3ad2', 'payments': 1092, 'events': 4693}
Inspect schema, grain, and counts
dataset = data.require_dataset()
fraud_ids = {item.payment_id for item in data.behavior.fraud_records if item.fraud_truth}
rows = [
dict(row, label=("FRAUD" if row["payment_id"] in fraud_ids else "LEGITIMATE"))
for row in dataset.rows
]
frame = dataset.frame.with_columns(pl.Series("label", [row["label"] for row in rows]))
split_summary = (
frame.select(["split", "label"])
.group_by("split")
.agg(pl.len().alias("rows"), pl.col("label").eq("FRAUD").sum().alias("fraud"))
.sort("split")
)
total = split_summary.select(
pl.lit("total").alias("split"),
pl.col("rows").sum().cast(pl.UInt32).alias("rows"),
pl.col("fraud").sum().cast(pl.UInt32).alias("fraud"),
)
display(pl.concat([split_summary, total]))
assert "prediction_time" in frame.columns
shape: (4, 3)
| split | rows | fraud |
|---|---|---|
| str | u32 | u32 |
| "test" | 651 | 40 |
| "train" | 238 | 3 |
| "validation" | 197 | 1 |
| "total" | 1086 | 44 |
Run the core operation
# Check temporal boundaries and obvious leakage indicators before fitting.
times = frame.select(
pl.col("prediction_time").min().alias("first"), pl.col("prediction_time").max().alias("last")
)
display(times)
assert "prediction_time" in frame.columns and "label" in frame.columns
print("leakage check: only point-in-time features are used; labels are evaluation targets")
shape: (1, 2)
| first | last |
|---|---|
| datetime[μs, UTC] | datetime[μs, UTC] |
| 2026-01-01 00:40:02 UTC | 2026-01-10 23:57:05 UTC |
leakage check: only point-in-time features are used; labels are evaluation targets
Measure and interpret the result
from fraudtwin.ml import heuristic_predictions, load_baseline_config, train_baselines
policy = load_baseline_config(root / "configs" / "ml-baselines.yaml")
heuristic = heuristic_predictions(rows)
print(f"Heuristic predictions: {len(heuristic):,}")
print(f"Configured models: {', '.join(policy.models)}")
try:
trained = train_baselines(rows, policy, source_run_dir=None)
print(f"Trained models: {', '.join(trained.model_artifacts or {})}")
except (RuntimeError, ValueError) as exc:
try:
fallback_policy = policy.model_copy(update={"models": ("logistic_regression",)})
trained = train_baselines(rows, fallback_policy)
print("Some configured models are unavailable; using logistic_regression for comparison.")
except (RuntimeError, ValueError):
fallback_policy = policy.model_copy(update={"models": ("deterministic_heuristic",)})
trained = train_baselines(rows, fallback_policy)
print(
"Optional model training unavailable; "
f"using deterministic fallback ({type(exc).__name__})."
)
Heuristic predictions: 1,086
Configured models: logistic_regression, lightgbm, xgboost, catboost
Some configured models are unavailable; using logistic_regression for comparison.
Exercise a parameter or failure mode
from fraudtwin.ml import evaluate_predictions
heuristic_result = evaluate_predictions(rows, heuristic, policy, model_id="heuristic")
trained_metrics = pl.DataFrame(list(trained.metrics))
if trained_metrics.filter(pl.col("model_id") != "deterministic_heuristic").height:
metrics = pl.concat(
[pl.DataFrame(list(heuristic_result.metrics)), trained_metrics], how="diagonal_relaxed"
)
else:
metrics = pl.DataFrame(list(heuristic_result.metrics))
display(metrics)
try:
import matplotlib.pyplot as plt
plot_metrics = (
metrics.filter(
pl.col("segment_dimension").is_null()
& (pl.col("partition") == "test")
& pl.col("pr_auc").is_not_null()
)
.unique(subset=["model_id"], keep="last")
.sort("model_id")
)
if plot_metrics.height < 2:
print("At least two test-set models are required for a comparison plot.")
else:
labels = plot_metrics["model_id"].to_list()
fig, axis = plt.subplots(figsize=(8, 4))
axis.bar(labels, plot_metrics["pr_auc"].to_list(), color=["#2563eb", "#f97316"])

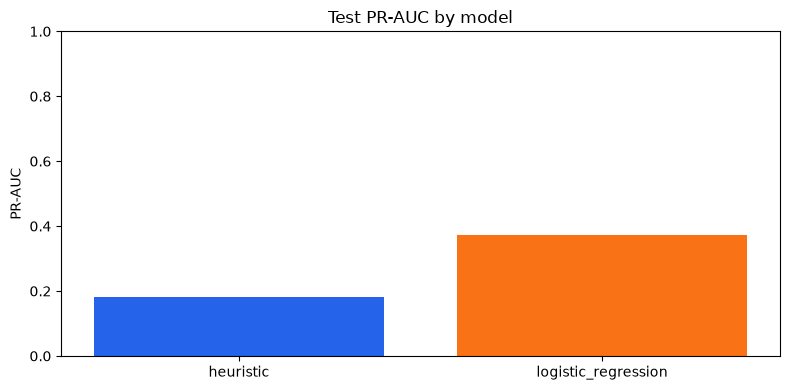

axis.set(title="Test PR-AUC by model", ylabel="PR-AUC")
axis.set_ylim(0, 1)
fig.tight_layout()
plt.show()
plt.close(fig)
except ImportError:
print("Install matplotlib to render the PR-AUC plot.")
shape: (40, 29)
| model_id | partition | row_count | labelled_row_count | positive_count | roc_auc | pr_auc | precision | recall | f1 | precision_at_fixed_fpr | recall_at_fixed_fpr | precision_at_fixed_recall | precision_at_k | recall_at_k | brier_score | calibration | thresholds | fixed_fpr_target | fixed_recall_target | ranking_k_fraction | ranking_unit | label_policy | monetary_by_currency | detection_delay_seconds_mean | detected_fraud_count | undetected_fraud_count | segment_dimension | segment_value |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| str | str | i64 | i64 | i64 | f64 | f64 | f64 | f64 | f64 | f64 | f64 | f64 | f64 | f64 | f64 | struct[1] | struct[3] | f64 | f64 | f64 | str | str | struct[1] | null | i64 | i64 | str | str |
| "heuristic" | "train" | 238 | 238 | 3 | 0.473759 | 0.019618 | 0.017857 | 0.333333 | 0.033898 | 0.0 | 0.0 | 0.017857 | 0.0 | 0.0 | 0.319539 | {0.443504} | {0.646059,0.893859,0.646059} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{0.0,5907.81,3879.3}} | null | 0 | 3 | null | null |
| "heuristic" | "validation" | 197 | 197 | 1 | 0.938776 | 0.076923 | 0.076923 | 1.0 | 0.142857 | 0.0 | 0.0 | 0.076923 | 0.0 | 0.0 | 0.149372 | {0.240197} | {0.646059,0.893859,0.646059} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{0.0,4875.0,174.67}} | null | 0 | 1 | null | null |
| "heuristic" | "test" | 651 | 651 | 40 | 0.850327 | 0.18204 | 0.142857 | 0.05 | 0.074074 | 0.5 | 0.025 | 0.142857 | 0.142857 | 0.025 | 0.088223 | {0.027233} | {0.646059,0.893859,0.646059} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{1123.74,49319.53,4928.53}} | null | 0 | 40 | null | null |
| "heuristic" | "test" | 651 | 651 | 40 | 0.850327 | 0.18204 | 0.142857 | 0.05 | 0.074074 | 0.5 | 0.025 | 0.142857 | 0.142857 | 0.025 | 0.088223 | {0.027233} | {0.646059,0.893859,0.646059} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{1123.74,49319.53,4928.53}} | null | 0 | 40 | "fraud_type" | "unavailable" |
| "heuristic" | "test" | 184 | 184 | 0 | null | null | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | null | 0.03423 | {0.063797} | {0.646059,0.893859,0.646059} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{0.0,0.0,0.0}} | null | 0 | 0 | "payment_rail" | "ACCOUNT_TRANSFER" |
| … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … |
| "logistic_regression" | "test" | 95 | 95 | 0 | null | null | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | null | 4.6260e-7 | {0.000356} | {0.044928,0.044928,0.044928} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{0.0,0.0,0.0}} | null | 0 | 0 | "time_period" | "2026-01-06" |
| "logistic_regression" | "test" | 104 | 104 | 0 | null | null | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | null | 2.5191e-7 | {0.000237} | {0.044928,0.044928,0.044928} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{0.0,0.0,0.0}} | null | 0 | 0 | "time_period" | "2026-01-07" |
| "logistic_regression" | "test" | 95 | 95 | 0 | null | null | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | null | 7.7324e-7 | {0.000373} | {0.044928,0.044928,0.044928} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{0.0,0.0,0.0}} | null | 0 | 0 | "time_period" | "2026-01-08" |
| "logistic_regression" | "test" | 85 | 85 | 0 | null | null | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | null | 9.5972e-8 | {0.000171} | {0.044928,0.044928,0.044928} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{0.0,0.0,0.0}} | null | 0 | 0 | "time_period" | "2026-01-09" |
| "logistic_regression" | "test" | 100 | 100 | 0 | null | null | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | null | 2.3010e-7 | {0.000192} | {0.044928,0.044928,0.044928} | 0.01 | 0.8 | 0.01 | "events" | "exclude_unresolved" | {{0.0,0.0,0.0}} | null | 0 | 0 | "time_period" | "2026-01-10" |
Write a compact artifact and fingerprint
out = root / "outputs" / "train-and-track-fraud-model"
out.mkdir(parents=True, exist_ok=True)
manifest = out / "evaluation-manifest.json"
manifest.write_text(json.dumps(heuristic_result.manifest, indent=2, default=str), encoding="utf-8")
print(f"Evaluation manifest: {manifest.relative_to(root)}")
print(f"Size: {manifest.stat().st_size:,} bytes")
Evaluation manifest: outputs/train-and-track-fraud-model/evaluation-manifest.json
Size: 3,284 bytes
Verify invariants and clean up
summary = {
"run_id": run_id,
"payments": len(data.behavior.payments),
"payment_events": len(data.behavior.payment_events),
"fraud_records": len(data.behavior.fraud_records),
}
assert summary["payments"] == len(payments)
assert summary["payments"] > 0
print(json.dumps(summary, indent=2, default=str))
{
"run_id": "RUN-67aabdbd8cee3ad2",
"payments": 1092,
"payment_events": 4693,
"fraud_records": 51
}
Record the generated shape and tutorial contract.#
summary = {
"payments": len(data.behavior.payments),
"events": len(data.behavior.payment_events),
}
print(summary)
assert summary["payments"] >= 0
{'payments': 1092, 'events': 4693}
Inspect stable payment identities.#
ids = [item.payment_id for item in data.behavior.payments]
assert len(ids) == len(set(ids))
print({"unique_payment_ids": len(ids)})
{'unique_payment_ids': 1092}
Record the generated shape and tutorial contract.#
summary = {
"payments": len(data.behavior.payments),
"events": len(data.behavior.payment_events),
}
print(summary)
assert summary["payments"] >= 0
{'payments': 1092, 'events': 4693}
try:
from examples.model_service.app import create_app
from fastapi.testclient import TestClient
artifact_bytes = (trained.model_artifacts or {}).get("logistic_regression")
if artifact_bytes is None:
raise RuntimeError("a persisted logistic_regression artifact is required")
with TemporaryDirectory(prefix="fraudtwin-serving-") as serving_dir:
artifact_path = Path(serving_dir) / "logistic_regression.joblib"
artifact_path.write_bytes(artifact_bytes)
client = TestClient(create_app(artifact_path))
health = client.get("/health")
score = client.post(
"/score",
json={
"event_id": "tutorial-9",
"prediction_timestamp": "2026-01-01T00:00:00Z",
"features": {},
},
)
invalid = client.post(
"/score",
json={"event_id": "tutorial-9", "prediction_timestamp": "not-a-time", "features": {}},
)
print(
{"health": health.status_code, "score": score.status_code, "invalid": invalid.status_code}
)
except Exception as exc:
print({"connected": False, "offline_fallback": True, "reason": type(exc).__name__})
{'connected': False, 'offline_fallback': True, 'reason': 'ModuleNotFoundError'}
assert heuristic_result.manifest
print({"offline_fallback": True, "metrics": len(heuristic_result.metrics)})
{'offline_fallback': True, 'metrics': 20}
