Calibration and counterfactual fraud experiments

Goal. Fit a calibration profile against reference data, then run a controlled counterfactual intervention. The workflow keeps source truth immutable and records provenance for both artifacts.

Audience. Data/ML scientists, fraud analysts, platform engineers, and researchers.

Prerequisites. Python 3.12+, a clean checkout, and the base FraudTwin install. The workflow is deterministic and runs offline; service integrations are deliberately out of scope here.

Source size. 1,000–10,000 logical payments. Every section writes only compact summaries, manifests, or fingerprints to a temporary directory.

Interpretation. Synthetic evidence demonstrates mechanics and invariants, not production prevalence or model performance guarantees.

Calibration against reference data

from pathlib import Path

import polars as pl

from fraudtwin.calibration import (
    ReferenceDataset,
    apply_calibration_profile,
    fit_calibration_profile,
    load_calibration_profile,
    write_calibration_profile,
)
from fraudtwin.config import load_config
from fraudtwin.generation import generate
from fraudtwin.reproducibility import sha256_json

root = next(
    (p for p in (Path.cwd(), *Path.cwd().parents) if (p / "configs" / "minimal.yaml").is_file()),
    Path.cwd(),
)
base = load_config(root / "configs" / "minimal.yaml")
config = base.model_copy(
    update={"payments": base.payments.model_copy(update={"daily_target": 1000})}
)
data = generate(config, write=False)
payments = data.behavior.payments
print({"run_id": data.run_id, "payments": len(payments)})
assert len(payments) >= 1000

{'run_id': 'RUN-f0981dbfd03c1bf5', 'payments': 1000}

reference = pl.DataFrame(
    [
        {"amount": p.amount, "event_time": p.initiated_at, "customer_id": p.payer_account_id}
        for p in payments
    ]
)
reference_summary = pl.DataFrame(
    {
        "metric": [
            "payments",
            "customers",
            "first event",
            "last event",
            "minimum amount",
            "median amount",
            "average amount",
            "maximum amount",
        ],
        "value": [
            str(reference.height),
            str(reference["customer_id"].n_unique()),
            reference["event_time"].min().strftime("%Y-%m-%d %H:%M UTC"),
            reference["event_time"].max().strftime("%Y-%m-%d %H:%M UTC"),
            f"{reference['amount'].min():.2f}",
            f"{reference['amount'].median():.2f}",
            f"{reference['amount'].mean():.2f}",
            f"{reference['amount'].max():.2f}",
        ],
    }
)
print(reference_summary)
assert reference.height >= 1000

shape: (8, 2)
┌────────────────┬──────────────────────┐
│ metric         ┆ value                │
│ ---            ┆ ---                  │
│ str            ┆ str                  │
╞════════════════╪══════════════════════╡
│ payments       ┆ 1000                 │
│ customers      ┆ 15                   │
│ first event    ┆ 2026-01-01 00:01 UTC │
│ last event     ┆ 2026-01-01 23:57 UTC │
│ minimum amount ┆ 1.00                 │
│ median amount  ┆ 11.43                │
│ average amount ┆ 19.87                │
│ maximum amount ┆ 279.76               │
└────────────────┴──────────────────────┘

ref = ReferenceDataset(
    reference,
    source_fingerprint=sha256_json(reference.to_dicts()),
    schema_fingerprint=sha256_json([(n, str(t)) for n, t in reference.schema.items()]),
)
profile = fit_calibration_profile(ref, seed=42)
print(
    {
        "profile_id": profile.profile_id,
        "summaries": len(profile.summaries),
        "distributions": len(profile.distributions),
    }
)

{'profile_id': 'CAL-f25cf58a1938beae78ce', 'summaries': 10, 'distributions': 2}

summary_table = [
    {"name": s.name, "fields": s.fields, "available": s.available} for s in profile.summaries
]
display(pl.DataFrame(summary_table))
assert any(s["name"] == "amount_distribution" for s in summary_table)

shape: (10, 3)

name	fields	available
str	list[str]	bool
"amount_distribution"	["amount"]	true
"seasonality"	["event_time"]	true
"customer_activity"	["customer_id"]	true
"transaction_count"	["customer_id"]	true
"inter_arrival"	["event_time"]	true
"merchant_frequency"	["merchant_category"]	true
"account_balance"	["account_balance"]	true
"graph_statistics"	["payer_account_id", "payee_account_id"]	true
"campaign_statistics"	["campaign_id"]	true
"feature_dependencies"	["amount", "event_time", "merchant_category"]	true

amount = next(d for d in profile.distributions if d.name == "amount")
print({"quantiles": amount.quantiles, "minimum": amount.minimum, "maximum": amount.maximum})
assert amount.minimum is not None and amount.maximum is not None

{'quantiles': (1.0, 2.67, 5.04, 11.44, 25.81, 44.11, 279.76), 'minimum': 1.0, 'maximum': 279.76}

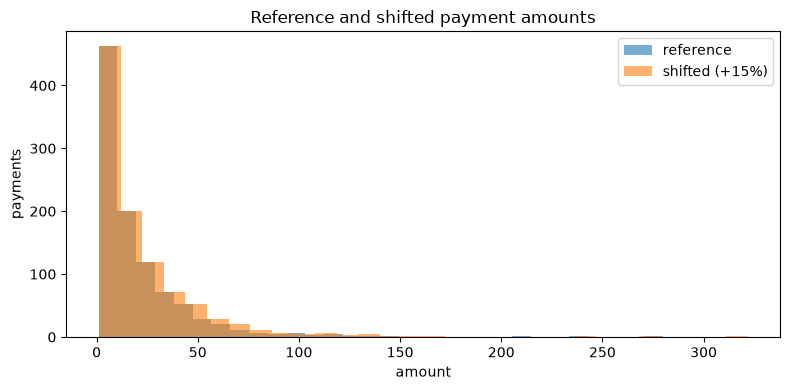

shifted = reference.with_columns((pl.col("amount") * 1.15).alias("amount"))
try:
    import matplotlib.pyplot as plt

    fig, axis = plt.subplots(figsize=(8, 4))
    axis.hist(reference["amount"].to_list(), bins=30, alpha=0.6, label="reference")
    axis.hist(shifted["amount"].to_list(), bins=30, alpha=0.6, label="shifted (+15%)")
    axis.set(title="Reference and shifted payment amounts", xlabel="amount", ylabel="payments")
    axis.legend()
    fig.tight_layout()
    plt.show()
    plt.close(fig)
except ImportError:
    print("Install matplotlib to render the amount-shift plot.")
assert shifted["amount"].mean() > reference["amount"].mean()

resolved = apply_calibration_profile(profile, seed=42)
print(
    {"enabled": resolved.enabled, "profile_id": resolved.profile_id, "streams": resolved.stream_ids}
)
assert resolved.enabled and resolved.profile_id == profile.profile_id

{'enabled': True, 'profile_id': 'CAL-f25cf58a1938beae78ce', 'streams': ('milestone-16:calibrated-generation',)}

from tempfile import TemporaryDirectory

with TemporaryDirectory() as tmp:
    path = write_calibration_profile(profile, Path(tmp) / "profile.yaml")
    loaded = load_calibration_profile(path)
print({"loaded": loaded.profile_id, "source_rows": loaded.provenance.row_count})
assert loaded.profile_id == profile.profile_id

{'loaded': 'CAL-f25cf58a1938beae78ce', 'source_rows': 1000}

artifact = {
    "run_id": data.run_id,
    "profile_id": profile.profile_id,
    "source": profile.provenance.source_fingerprint,
    "rows": profile.provenance.row_count,
}
artifact["fingerprint"] = sha256_json(artifact)
print(
    {
        "run_id": artifact["run_id"],
        "profile_id": artifact["profile_id"],
        "rows": artifact["rows"],
        "fingerprint": f"{artifact['fingerprint'][:12]}...",
    }
)

{'run_id': 'RUN-f0981dbfd03c1bf5', 'profile_id': 'CAL-f25cf58a1938beae78ce', 'rows': 1000, 'fingerprint': '9eee750347de...'}

assert artifact["fingerprint"] == sha256_json(
    {k: v for k, v in artifact.items() if k != "fingerprint"}
)
print("Calibration is versioned, deterministic, and append-only.")

Calibration is versioned, deterministic, and append-only.

Counterfactual fraud experiment

from pathlib import Path

from fraudtwin.config import load_config
from fraudtwin.generation import generate
from fraudtwin.reproducibility import sha256_json

base = load_config(root / "configs" / "benchmarks" / "counterfactual-v1.yaml")
config = base
data = generate(config, write=False)
source_ids = tuple(p.payment_id for p in data.behavior.payments)
source_fp = sha256_json(source_ids)
cf = data.behavior.counterfactual
print(
    {"run_id": data.run_id, "payments": len(source_ids), "counterfactual_id": cf.counterfactual_id}
)
assert cf is not None

{'run_id': 'RUN-5ee94cd664213302', 'payments': 840, 'counterfactual_id': 'CF-RUN-5ee94cd664213302'}

print(
    {
        "original": len(cf.original_payments),
        "modified": len(cf.modified_payments),
        "accepted": sum(x.status == "ACCEPTED" for x in cf.change_sets),
        "rejected": len(cf.rejected),
    }
)
assert cf.change_sets

{'original': 3, 'modified': 3, 'accepted': 3, 'rejected': 0}

assert cf.change_sets
print("Counterfactual changes:")
for change in cf.change_sets:
    status = str(change.status).replace("_", " ").title()
    fields = ", ".join(change.changed_fields) or "none"
    print(
        f"  {change.objective} - {status}; "
        f"distance={change.effective_distance:.3f}; changed: {fields}"
    )

Counterfactual changes:
  F01 - Accepted; distance=1.000; changed: amount
  F03 - Accepted; distance=1.000; changed: beneficiary
  F04 - Accepted; distance=1.000; changed: beneficiary

accepted = [x for x in cf.change_sets if x.status == "ACCEPTED"]
print(
    {
        "accepted_objectives": [x.objective for x in accepted],
        "derived_ids": len(cf.modified_payments),
    }
)
assert all(x.derived_payment_id != x.source_payment_id for x in accepted)

{'accepted_objectives': ['F01', 'F03', 'F04'], 'derived_ids': 3}

pairs = list(zip(cf.original_payments, cf.modified_payments, strict=False))
print({"paired": len(pairs), "amount_changes": sum(a.amount != b.amount for a, b in pairs)})

{'paired': 3, 'amount_changes': 1}

from collections import Counter

counts = Counter(x.objective for x in cf.change_sets)
print(dict(counts))
assert sum(counts.values()) == len(cf.change_sets)

{'F01': 1, 'F03': 1, 'F04': 1}

source_after = sha256_json(tuple(p.payment_id for p in data.behavior.payments))
print({"before": f"{source_fp[:12]}...", "after": f"{source_after[:12]}..."})
assert source_after == source_fp

{'before': 'c7085b45e14d...', 'after': 'c7085b45e14d...'}

print(
    {"rejections": [{"objective": x.objective, "reason": x.rejection_reason} for x in cf.rejected]}
)

{'rejections': []}

manifest = {
    "counterfactual_id": cf.counterfactual_id,
    "source_run_id": data.run_id,
    "accepted": len(cf.modified_payments),
    "rejected": len(cf.rejected),
    "source_fingerprint": source_fp,
}
manifest["fingerprint"] = sha256_json(manifest)
print(
    {
        "counterfactual_id": manifest["counterfactual_id"],
        "accepted": manifest["accepted"],
        "rejected": manifest["rejected"],
        "fingerprint": f"{manifest['fingerprint'][:12]}...",
    }
)

{'counterfactual_id': 'CF-RUN-5ee94cd664213302', 'accepted': 3, 'rejected': 0, 'fingerprint': '9856785e73ec...'}

assert manifest["fingerprint"] == sha256_json(
    {k: v for k, v in manifest.items() if k != "fingerprint"}
)
print("The intervention sidecar changes derived records only; source truth is unchanged.")

The intervention sidecar changes derived records only; source truth is unchanged.

Verification and next step

Re-run the offline cells from a clean checkout and compare the printed fingerprints. For service-backed publication, continue with the relevant integration runbook after this notebook; do not treat synthetic metrics as a deployment SLO.
